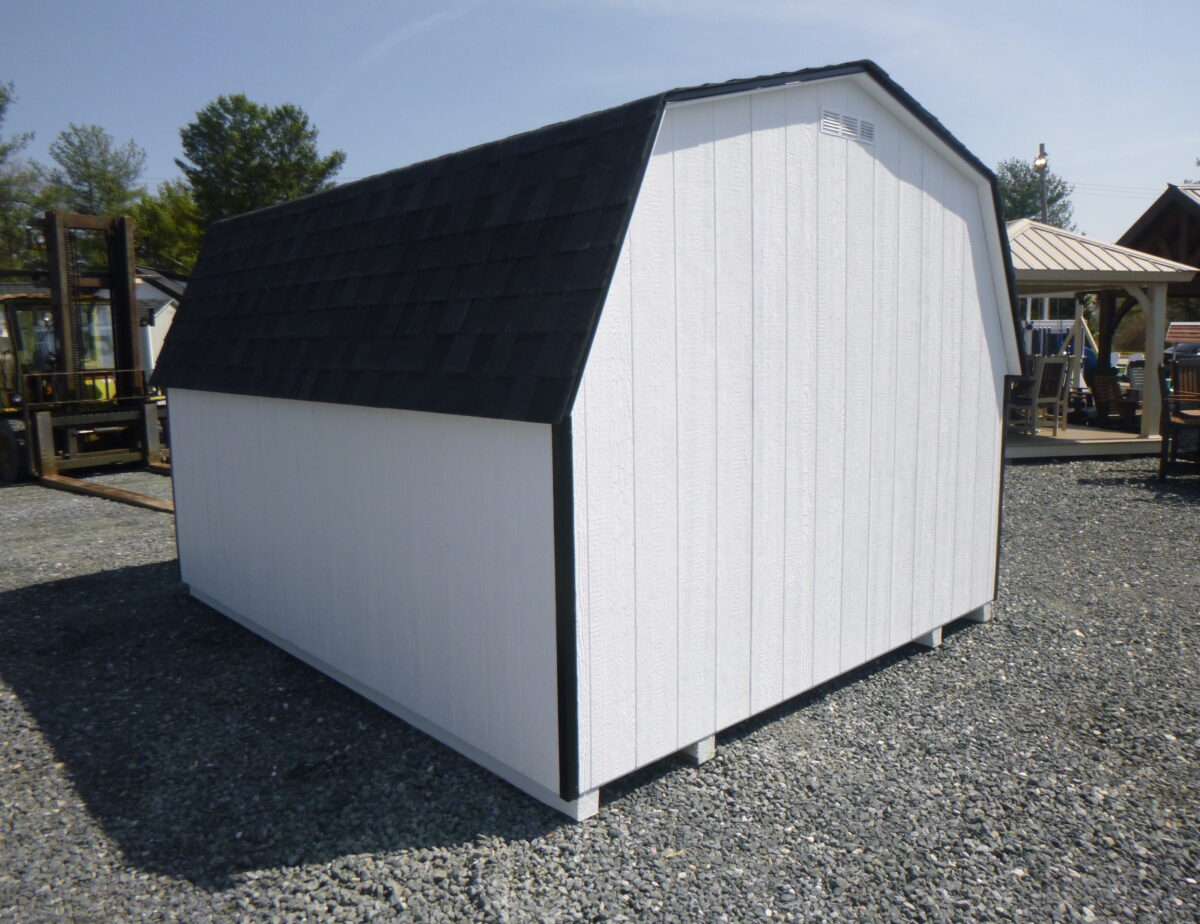

The 10×12 Madison Series Mini Barn from Pine Creek Structures is engineered as an affordable, high-value storage solution. Below are the detailed technical specifications and standard features:
Core Dimensions & Framing
- Footprint: 10′ x 12′

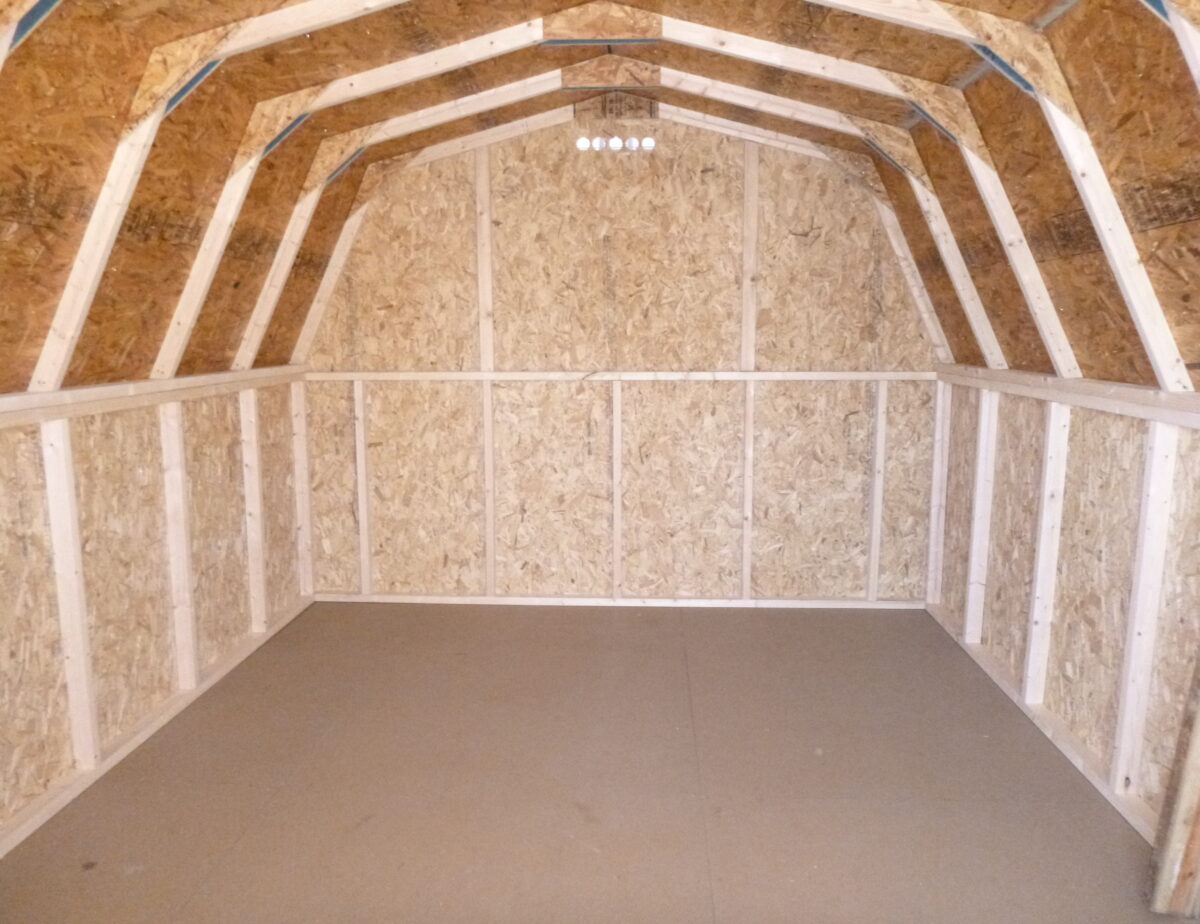

- Wall & Rafter Construction: 2×3 framing, spaced 24″ on center.
- Roof Style: Classic “Dutch Colonial” gambrel roof, designed to maximize overhead storage capacity.
Foundation & Flooring
- Runners: 4×4 pressure-treated runners for ground moisture resistance.
- Floor Joists: 2×4 joists, spaced 16″ on center.
- Flooring Material: 5/8″ floor sheeting for a solid, stable base.
Exterior & Roofing
- Siding Options: Choice of LP Smart Side or Vinyl siding.
- Color Profile: Available in various colors with matching or contrasting trim.
- Shingles: TAMKO TitanXT premium architectural shingles.
- Roof Protection: 3″ overhang and aluminum drip edges to divert water.
- Trim: Aluminum corner trim for enhanced exterior durability.
Access & Ventilation

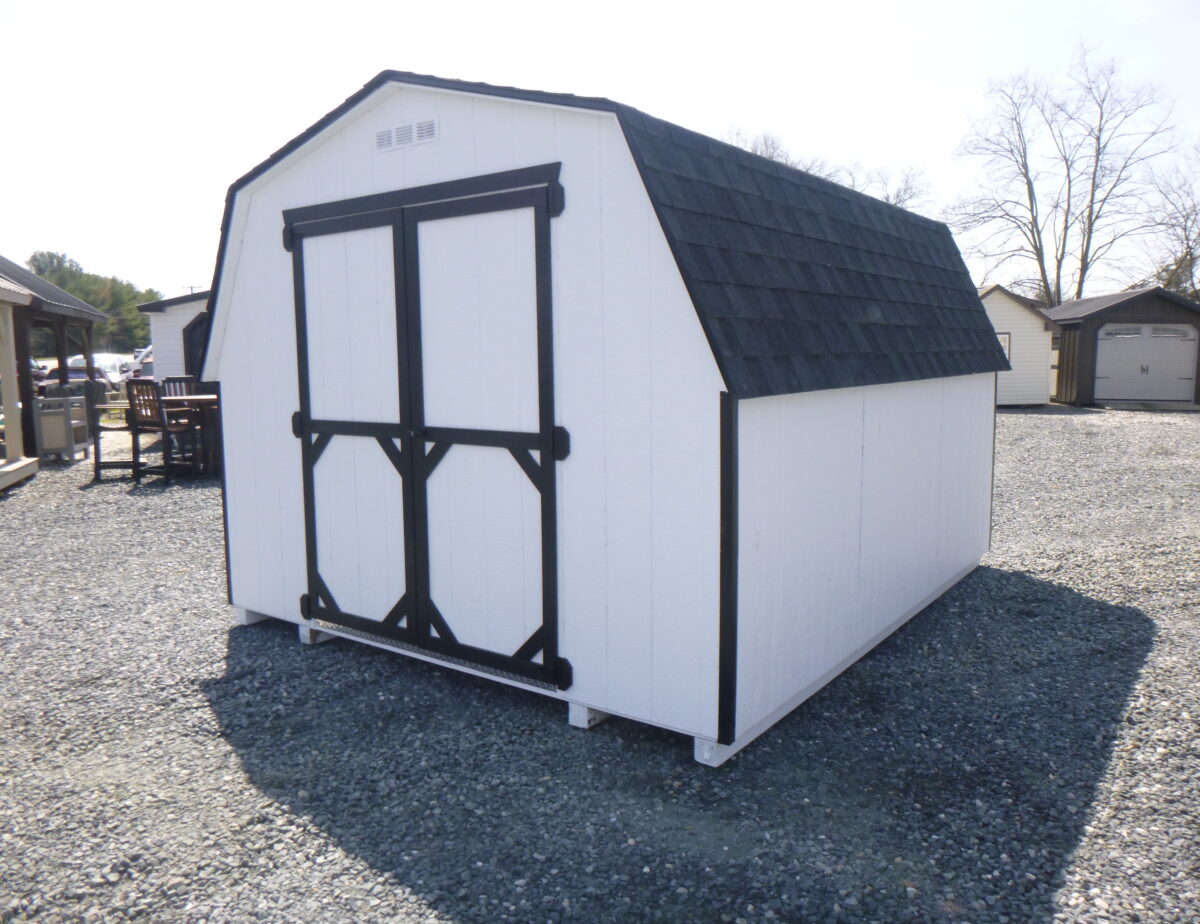

- Doors: One double door located on the gable end.
- Hardware: Keyed locking handle for security and decorative black T-hinges.
- Airflow: Two 4″ x 16″ end vents to prevent heat and moisture buildup.
Warranty & Upgrades
Common Upgrades: Optional diamond tread plate at the doorway or the addition of windows (not included in the standard base model).
Standard Warranty: Includes a 1-Year Top-To-Bottom Warranty.
Index #
MI21391
Dimensions
10 x 12
Colors
- White LP Smart Siding
- Black Trim
- Rustic Black TAMKO TitanXT Premium Shingles
Features
- 1-Year Top-To-Bottom Warranty from Pine Creek Structures
- Free Delivery within 20 Miles
- 4x16 Gable End Vents
- 10x12 Storage Shed
